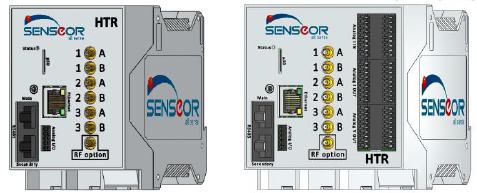

The AMS01 reader is dedicated to switchgear monitoring with wireless passive SAW temperature sensors, wired environmental sensor and UHF partial discharge detection. It is designed for use inside metallic cavities only like the switchgear cabinet and tuned to be compliant with IEC 62271 enabling a license-free use in switchgear worldwide.

This datasheet covers the following products:

• AMS01-T: Temperature monitoring only.
• AMS01-P: Partial discharge monitoring only.
• AMS01-TP: Temperature & partial discharge monitoring.

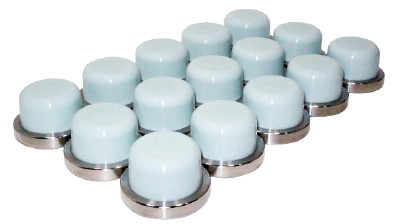

The TSAEV11 sensors are dedicated to switchgear monitoring as a wireless passive SAW temperature sensors. They are designed for use inside metallic cavities only like the switchgear cabinet and tuned to be compliant with IEC 62271 enabling a license-free use in switchgear worldwide.

This datasheet covers the following products:
- TSA-EV11-01: Sensor reference 1. -until - TSA-EV11-015: Sensor reference 15.

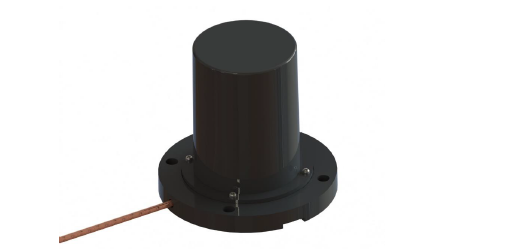

The AN-F1 antennas are dedicated to switchgear monitoring for measurement of TSAEV11 temperature sensors and partial discharge detection. They are designed for use inside metallic cavities only like the switchgear cabinet and tuned to be compliant with IEC 62271 enabling a license-free use in switchgear worldwide.

This datasheet covers the following products :

• AN-F1-295: Antenna with 295 cm cable length.
• AN-F1-455: Antenna with 455 cm cable length.
• AN-F1-620: Antenna with 620 cm cable length.
• AN-F1-800: Antenna with 800 cm cable length.
• AN-F1-1000: Antenna with 1020 cm cable length.

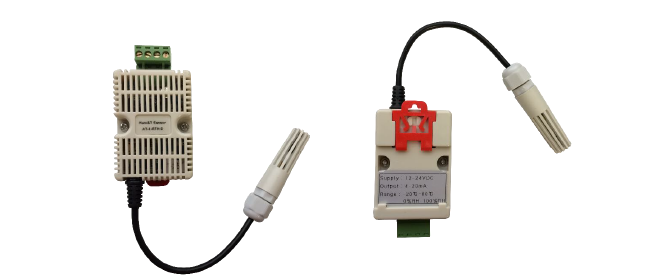

The AMS01-ENV-SENS sensor is dedicated to switchgear monitoring as wired ambient temperature, relative humidity and dew point sensor. It is designed for use inside metallic cavities only like the switchgear cabinet and tuned to be compliant with IEC 62271 enabling a license-free use in switchgear worldwide.
